Specification | Details |
Dimensions | 1600×450×500mm |
Solar Panel Output | 100W monocrystalline (23% efficiency) |
USB Ports | 3×USB 3.0 (5V/2.1A) |
Lighting | 12V 10W LED lamps (3000K warm white) |
Operating Temperature | -20°C to 60°C |
Battery Capacity | 95Ah lithium-ion (2000+ cycles) |
Wi-Fi Coverage | 2–25m (optional 4G router) |
Mobile Phone Charging
Mobile Phone Charging: It is equipped with 1 group of wireless charging modules, 2 groups of wired charging interfaces, and supports USB standard interface and USB Type-C interface charging.
Smart Seat Heating
Seat Heating: The plastic wood panel of the seat has a heating function (optional), and the graphene electric heating flexible film scheme is adopted, which is safe and reliable. When the outdoor temperature is low, the heating function can be activated to increase the warm experience of the passengers, highlighting the people-oriented construction concept.
Solar-Powered System
Solar Power Supply: The seat is equipped with 80W solar photovoltaic panels and a built-in battery energy storage unit, so the installation of the smart seat does not need to be separately energized for the construction of the smart seat, which is convenient and fast, and reduces the comprehensive cost of the project.
Smart Audio System
Smart Speaker: The smart speaker has a voice broadcast function, which can be set to play music through the back-end platform. Real-time news. emergency information reminders and other content. Users can also customize music playback through Bluetooth connection, which is interactive and enhances the user's integration experience.
Ambient LED Lighting
Atmosphere Lighting: The seat is designed with atmosphere lighting, which increases the visual experience of the product for night use and adds rich design colors to the use scene.
Mosquito Control System
Mosquito Killer Lamp Module: The seat is equipped with 2 groups of mosquito killer lamp modules, which adopts inhalation physical mosquito control method, which is colorless, odorless and pollution-free, and does not use chemical agents, which is conducive to environmental protection, reduces the possibility of seat occupants being bitten by pests, and reflects the service awareness of construction managers.
Application Scenario
 |  |
 |  |
ZEMSO Solar Bench
Making Cities Smarter and Travel More Convenient
The Solar-Powered Smart Bench ZEMSO-ZY-0002 merges urban furniture with renewable energy technology, offering public charging, ambient lighting, and connectivity in parks, transit stops, and public plazas—contributing to city-wide carbon neutrality goals. This eco-friendly solution reduces reliance on grid electricity (saving up to 500kWh annually per unit) while enhancing community amenities, providing a convenient resting spot with added functionality for residents, commuters, and tourists.

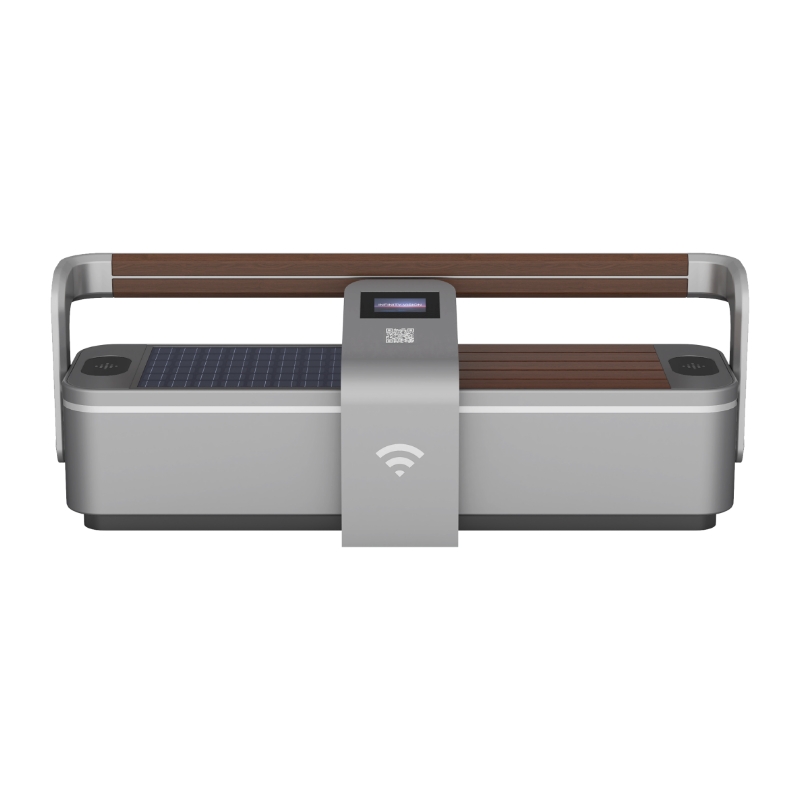

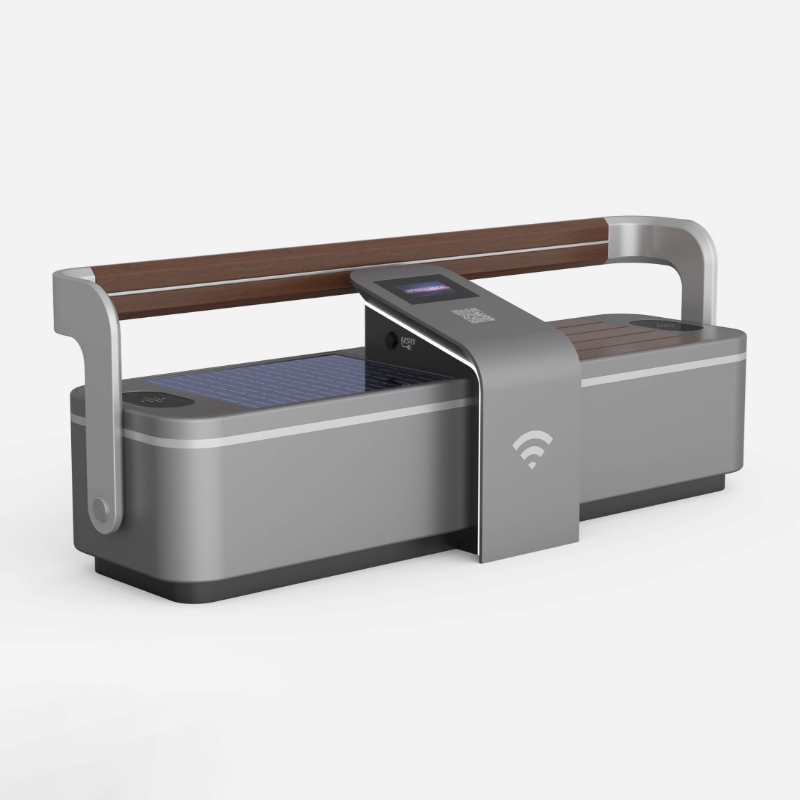

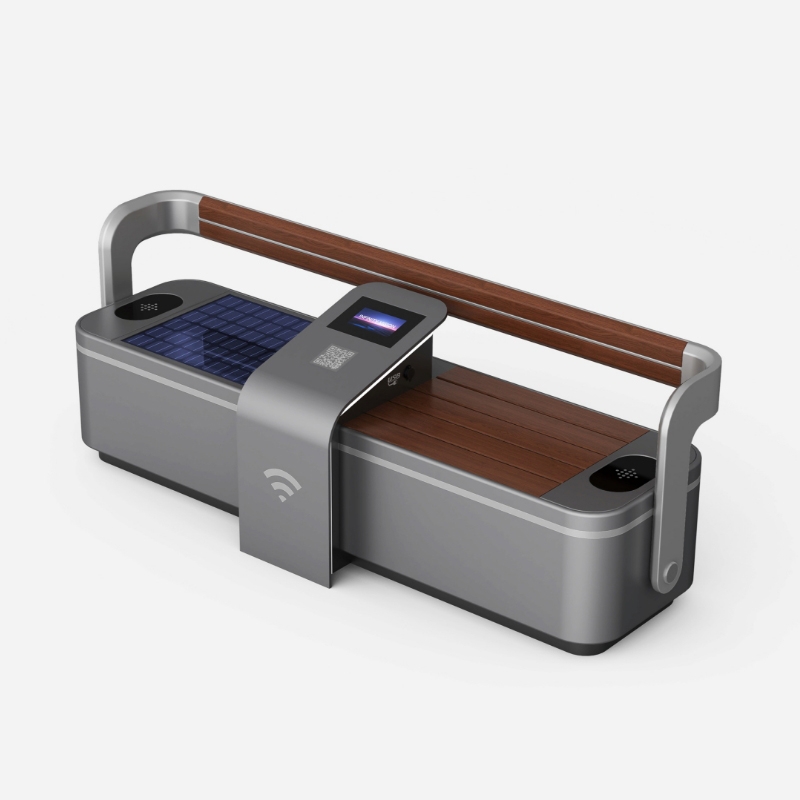

The ZEMSO-ZY-0003 is an innovative smart city furniture solution that combines sustainable energy, public convenience, into one modern outdoor seating system. Powered by high-efficiency solar panels, the bench operates independently without requiring an external power supply, making it ideal for parks, streets, campuses, commercial plazas, transportation hubs, and smart city projects.
Designed to enhance both user experience and urban infrastructure, the bench integrates fast mobile device charging, an intelligent audio system, ambient LED lighting, optional heated seating, mosquito control, and an LCD advertising display. It provides valuable public services while creating new opportunities for digital communication and advertising revenue.
FAQ
1. Does the solar bench require an external power connection?
No. The ZEMSO-ZY-0003 is powered by an integrated 80W solar panel and built-in battery storage system. Under normal operating conditions, no external electrical connection is required, making installation faster and more cost-effective.
2. What charging options are available?
The bench supports multiple charging methods, including wireless charging, USB-A, and USB Type-C charging ports, allowing users to charge a wide variety of mobile devices simultaneously.
3. Is the heated seat available as a standard feature?
Seat heating is an optional configuration. Customers can select the graphene heating system based on their local climate and project requirements.
4. Is the solar bench suitable for long-term outdoor use?
Yes. The ZEMSO-ZY-0003 is manufactured using durable, weather-resistant materials and is designed to withstand various outdoor environmental conditions, making it suitable for year-round operation in public spaces.
