Ultrathin Bus Stop Signage ZEMSO-DZZP-0001 Specification | ||||
| Basic Functions | Illustrate | A-level | Class B | C-Class |
| Appearance | Appearance Style | Fixed | Fixed | Fixed |

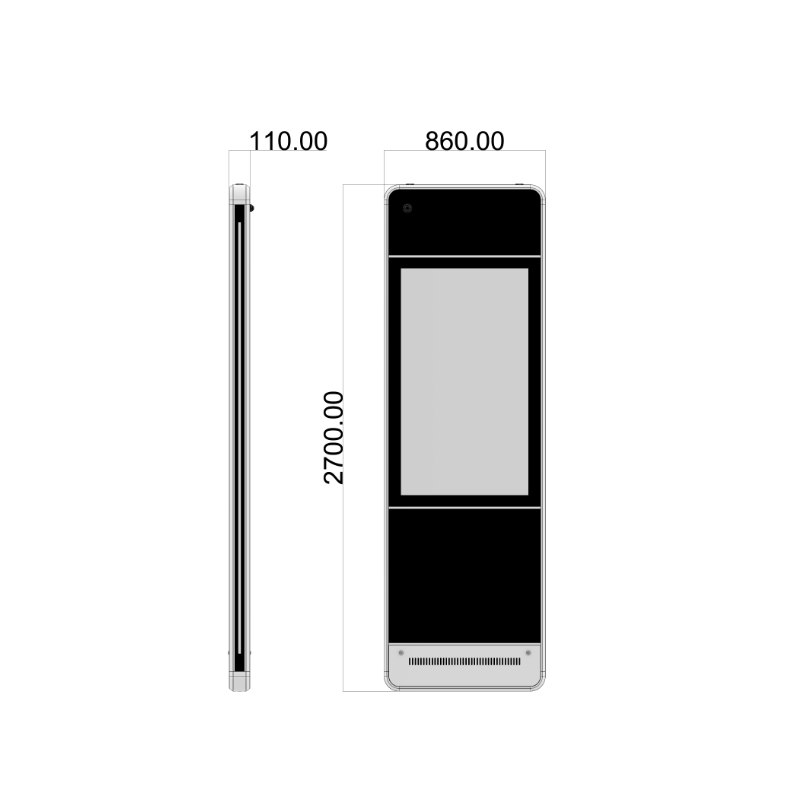

| Appearance thickness | 150mm | 110mm | 110mm | |
| Material Type | Galvanizing | Optional | Optional | |
| Mood Light | None | Support | Support | |
| Material | Cooling method | Air Cooling | Air Cooling | Air Cooling |
| LCD screen | Screen size | 55'' | 55'' | 55'' |
| Screen brightness | 1500CD/㎡ | 2500CD/㎡ | 3500CD/㎡ | |
| Screen type | Conventional screen | Industrial screen | Dynamic backlight industrial screen | |
| Screen technology | Ordinary | Normal/fit | Normal/fit | |
| Temperature range | -15~65℃ | -25~85℃ | -28~110℃ | |
| Control functions | Centralized Manager | 1st generation | 3rd generation | 3rd generation |
| system | Android | Android | Android | |
| Configuration | 4+32G | 4+32G | 4+32G | |
| Monitoring system | Camera pixels | 200W | 400W | 400W |
| Number of cameras | 2 | 2 | 2 | |
| storage | 2T | 4T | 4T | |
| Detection sensor | state | 2-way | 2-way | 2-way |
| temperature | 2-way | 2-way | 2-way | |
| Air switch and leakage protection | surge | 1 way | 1 way | 1 way |
| Leakage insurance | 1 way | 1 way | 1 way | |
| socket | 1 way | 1 way | 1 way | |
| Embedded Software | Front-end application | Regular station announcement | Support function customization | Support function customization |
| TTS voice broadcast | Support | Support | Support | |
| Play Safe | Support | Support | Support | |
| communication | 4G communication (brand wireless router) | 4 network ports | 4 network ports | 4 network ports |
| Platform Module | Station distance prediction function, signal sending function | support | support | support |
| Time forecast station, message sending function | Not support | support | support | |
| Operation and maintenance management system | support | support | support | |
| Optional Features | Touch query (and various interactive customizations) | |||
| Remote firmware upgrade | ||||
| Passenger flow statistics | ||||
| Automatic fault analysis function | ||||
| New Product | ||||
| System Level Protection | ||||
The system adopts a dual-mode redundancy design,featuring an intelligent switching mechanism
between centralized control via the HC300 and autonomous discrete control of key peripheral
submodules.This ensures seamless operation of the distributed control system under both normal and
fault conditions.The device supports OTA(Over-the-Air)remote upgrades.
It combines exceptional structural strength with outstanding weather resistance,ensuring long-term
and stable operation of the equipment in outdoor environments.
Feedback is immediate and clear,status is perceivable,and operation is efficient.
Image analysis,TTS,passenger flow statistics,edge algorithms..
Realize the integration of Al large models,build workflows for digital human
Q&A applications,and provide APl interfaces to the outside.end users
communicate with the digital human through touchscreen and voice interaction.
Comprehensive standardized interfaces and security protocols are provided to enable the secure and
stable integration of diverse third-party hardware and software, there by allowing for boundless
extension and integration of system functionalities.

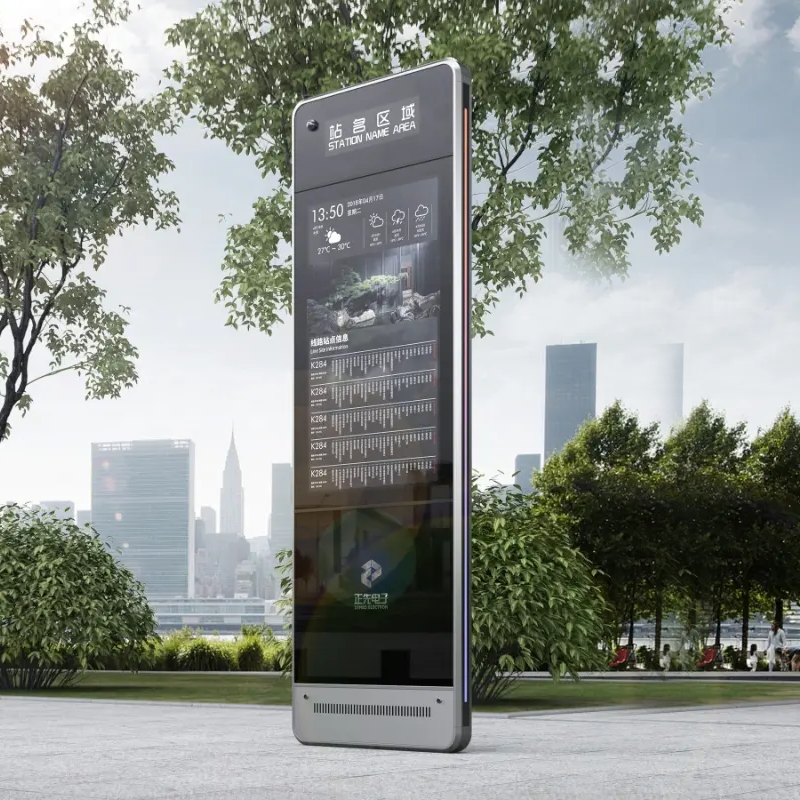

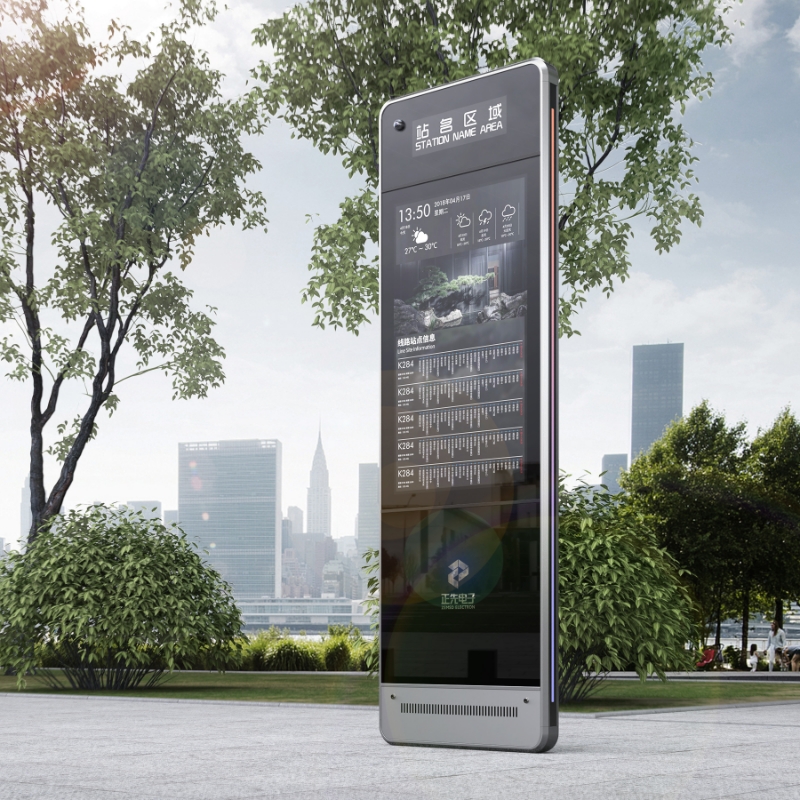

AI-Powered Smart Multifunctional Ultrathin Bus Stop Signage ZEMSO-DZZP-0001 is designed for modern urban transportation systems. Combining intelligent interaction, ultra-thin structure, and durable outdoor performance, it enhances passenger experience while supporting smart city management.
Built with high-strength materials and advanced AI technology, the system supports digital human interaction, passenger flow analysis, remote management, and multi-platform integration. It is suitable for BRT stations, urban bus stops, public transport hubs, and smart city projects.
FAQ
1. Is the bus stop signage suitable for outdoor use?
Yes. The product is designed specifically for outdoor environments with weather-resistant and corrosion-resistant materials for stable long-term operation.
2. Can the size and design be customized?
Yes. The dimensions, appearance, logo, and functional configuration can all be customized according to project requirements.
3. What operating systems are supported?
The signage supports Android, Windows, and Linux operating systems.
4. Does the product support remote management?
Yes. It supports OTA remote upgrades and centralized management for efficient system maintenance and content control.
5. What AI functions are included?
The system supports AI image analysis, TTS voice broadcasting, passenger flow statistics, edge computing, and digital human interactive Q&A.
6. What touch technologies are available?
IR touch, mesh metal touch, and G+G capacitive touch are available depending on project needs.
7. Can the system integrate with third-party platforms?
Yes. Open APIs and standardized interfaces allow secure integration with various hardware, software, and smart city systems.
8. What network options are supported?
The product supports WIFI, LAN, 3G, and 4G network connections.
