Bus Stop Digital Signage ZEMSO-DZZP-0008 Specification | ||||
| Basic Functions | Illustrate | A-level | Class B | C-Class |
| Appearance | Appearance Style | Fixed | Fixed | Fixed |
| Appearance thickness | 150mm | 110mm | 110mm | |
| Material Type | Galvanizing | Optional | Optional | |
| Mood Light | None | Support | Support | |
| Material | Cooling method | Air Cooling | Air Cooling | Air Cooling |
| LCD screen | Screen size | 55'' | 55'' | 55'' |
| Screen brightness | 1500CD/㎡ | 2500CD/㎡ | 3500CD/㎡ | |
| Screen type | Conventional screen | Industrial screen | Dynamic backlight industrial screen | |
| Screen technology | Ordinary | Normal/fit | Normal/fit | |
| Temperature range | -15~65℃ | -25~85℃ | -28~110℃ | |
| Control functions | Centralized Manager | 1st generation | 3rd generation | 3rd generation |
| system | Android | Android | Android | |
| Configuration | 4+32G | 4+32G | 4+32G | |
| Monitoring system | Camera pixels | 200W | 400W | 400W |
| Number of cameras | 2 | 2 | 2 | |
| storage | 2T | 4T | 4T | |
| Detection sensor | state | 2-way | 2-way | 2-way |
| temperature | 2-way | 2-way | 2-way | |
| Air switch and leakage protection | surge | 1 way | 1 way | 1 way |
| Leakage insurance | 1 way | 1 way | 1 way | |
| socket | 1 way | 1 way | 1 way | |
| Embedded Software | Front-end application | Regular station announcement | Support function customization | Support function customization |
| TTS voice broadcast | Support | Support | Support | |
| Play Safe | Support | Support | Support | |
| communication | 4G communication (brand wireless router) | 4 network ports | 4 network ports | 4 network ports |
| Platform Module | Station distance prediction function, signal sending function | support | support | support |
| Time forecast station, message sending function | Not support | support | support | |
| Operation and maintenance management system | support | support | support | |
| Optional Features | Touch query (and various interactive customizations) | |||
| Remote firmware upgrade | ||||
| Passenger flow statistics | ||||
| Automatic fault analysis function | ||||
| New Product | ||||
| System Level Protection | ||||
The system adopts a dual-mode redundancy design,featuring an intelligent switching mechanism
between centralized control via the HC300 and autonomous discrete control of key peripheral
submodules.This ensures seamless operation of the distributed control system under both normal and
fault conditions.The device supports OTA(Over-the-Air)remote upgrades.
It combines exceptional structural strength with outstanding weather resistance,ensuring long-term
and stable operation of the equipment in outdoor environments.
Feedback is immediate and clear,status is perceivable,and operation is efficient.
Image analysis,TTS,passenger flow statistics,edge algorithms..
Realize the integration of Al large models,build workflows for digital human
Q&A applications,and provide APl interfaces to the outside.end users
communicate with the digital human through touchscreen and voice interaction.
Comprehensive standardized interfaces and security protocols are provided to enable the secure and
stable integration of diverse third-party hardware and software, there by allowing for boundless
extension and integration of system functionalities.

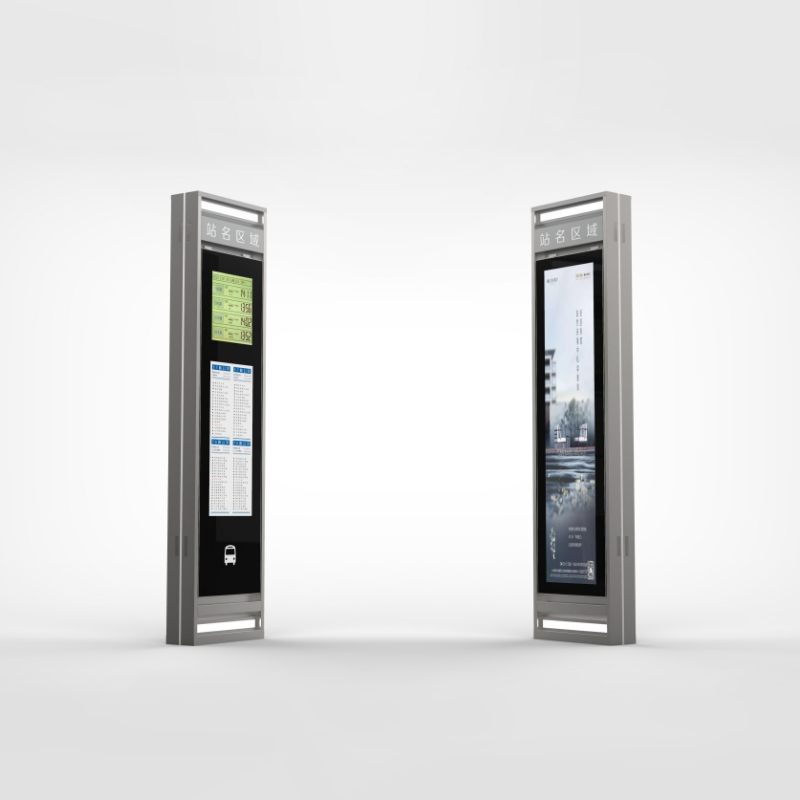

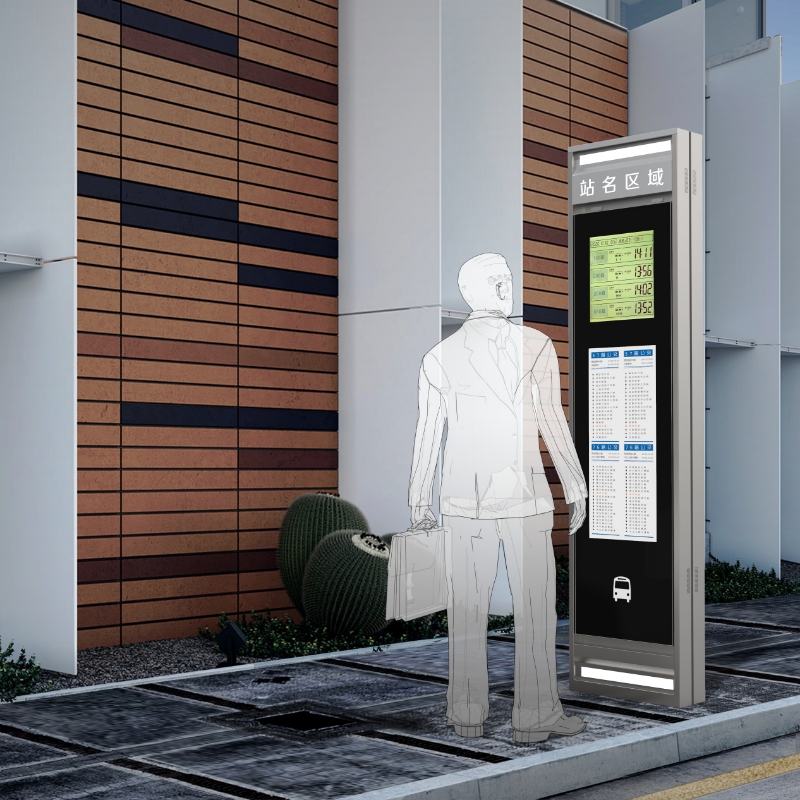

The Outdoor Solar LCD Bus Stop Digital Display ZEMSO-DZZP-0008 designed for smart transportation and sustainable city projects. Combining digital advertising, passenger information, and intelligent interaction, it provides an energy-efficient solution for modern urban environments.
Integrated solar power technology helps reduce operating costs and supports environmentally friendly smart city development.Features a dual-operation control system with automatic switching between centralized and local management modes, ensuring continuous and stable performance. OTA remote upgrades are also supported.
Built with premium stainless steel, galvanized steel, or aluminum materials for excellent durability, corrosion resistance, and long service life outdoors. Responsive touch interaction and intelligent feedback functions improve operational efficiency and passenger convenience.
With customizable configurations and reliable outdoor protection, the system delivers stable operation in various weather conditions while reducing energy consumption.
FAQ
1. Does the display support solar power?
Yes. The system is designed with solar energy compatibility for outdoor smart transportation projects.
2. Can the product be customized?
Yes. Size, appearance, materials, logo, and system configurations can all be customized.
3. Is it suitable for long-term outdoor operation?
Yes. The structure is designed for outdoor durability with strong resistance to weather and environmental conditions.
4. What operating systems are available?
Android, Windows, and Linux systems are supported.
5. Does it support remote management?
Yes. The system supports centralized remote control and OTA software upgrades.
6. What AI functions are included?
The display supports AI features such as passenger analytics, TTS broadcasting, image analysis, and digital human interaction.
7. Can external systems be integrated?
Yes. Open APIs allow secure integration with third-party platforms and smart city systems.
