Bus Stop Digital Signage ZEMSO-DZZP-0007 Specification | ||||
| Basic Functions | Illustrate | A-level | Class B | C-Class |
| Appearance | Appearance Style | Fixed | Fixed | Fixed |
| Appearance thickness | 150mm | 110mm | 110mm | |
| Material Type | Galvanizing | Optional | Optional | |
| Mood Light | None | Support | Support | |
| Material | Cooling method | Air Cooling | Air Cooling | Air Cooling |
| LCD screen | Screen size | 55'' | 55'' | 55'' |
| Screen brightness | 1500CD/㎡ | 2500CD/㎡ | 3500CD/㎡ | |
| Screen type | Conventional screen | Industrial screen | Dynamic backlight industrial screen | |
| Screen technology | Ordinary | Normal/fit | Normal/fit | |
| Temperature range | -15~65℃ | -25~85℃ | -28~110℃ | |
| Control functions | Centralized Manager | 1st generation | 3rd generation | 3rd generation |
| system | Android | Android | Android | |
| Configuration | 4+32G | 4+32G | 4+32G | |
| Monitoring system | Camera pixels | 200W | 400W | 400W |
| Number of cameras | 2 | 2 | 2 | |
| storage | 2T | 4T | 4T | |
| Detection sensor | state | 2-way | 2-way | 2-way |
| temperature | 2-way | 2-way | 2-way | |
| Air switch and leakage protection | surge | 1 way | 1 way | 1 way |
| Leakage insurance | 1 way | 1 way | 1 way | |
| socket | 1 way | 1 way | 1 way | |
| Embedded Software | Front-end application | Regular station announcement | Support function customization | Support function customization |
| TTS voice broadcast | Support | Support | Support | |
| Play Safe | Support | Support | Support | |
| communication | 4G communication (brand wireless router) | 4 network ports | 4 network ports | 4 network ports |
| Platform Module | Station distance prediction function, signal sending function | support | support | support |
| Time forecast station, message sending function | Not support | support | support | |
| Operation and maintenance management system | support | support | support | |
| Optional Features | Touch query (and various interactive customizations) | |||
| Remote firmware upgrade | ||||
| Passenger flow statistics | ||||
| Automatic fault analysis function | ||||
| New Product | ||||
| System Level Protection | ||||
The system adopts a dual-mode redundancy design,featuring an intelligent switching mechanism
between centralized control via the HC300 and autonomous discrete control of key peripheral
submodules.This ensures seamless operation of the distributed control system under both normal and
fault conditions.The device supports OTA(Over-the-Air)remote upgrades.
It combines exceptional structural strength with outstanding weather resistance,ensuring long-term
and stable operation of the equipment in outdoor environments.
Feedback is immediate and clear,status is perceivable,and operation is efficient.
Image analysis,TTS,passenger flow statistics,edge algorithms..
Realize the integration of Al large models,build workflows for digital human
Q&A applications,and provide APl interfaces to the outside.end users
communicate with the digital human through touchscreen and voice interaction.
Comprehensive standardized interfaces and security protocols are provided to enable the secure and
stable integration of diverse third-party hardware and software, there by allowing for boundless
extension and integration of system functionalities.

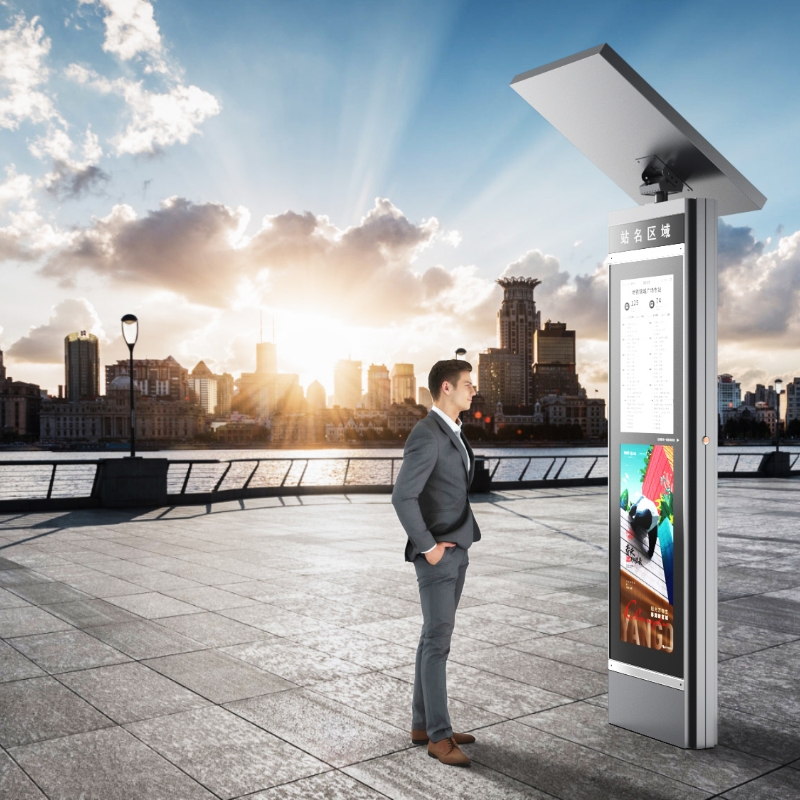

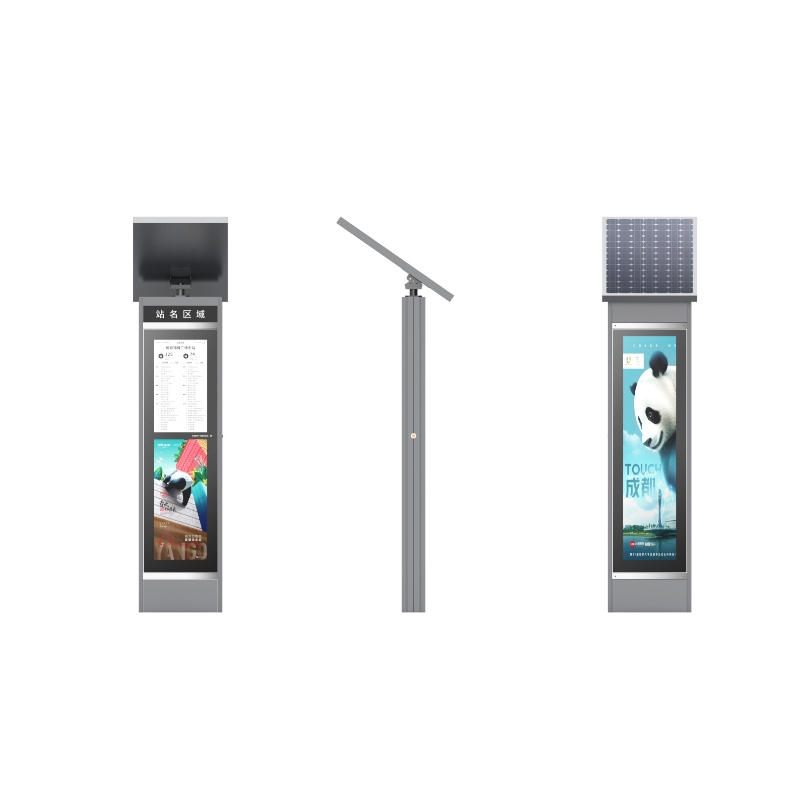

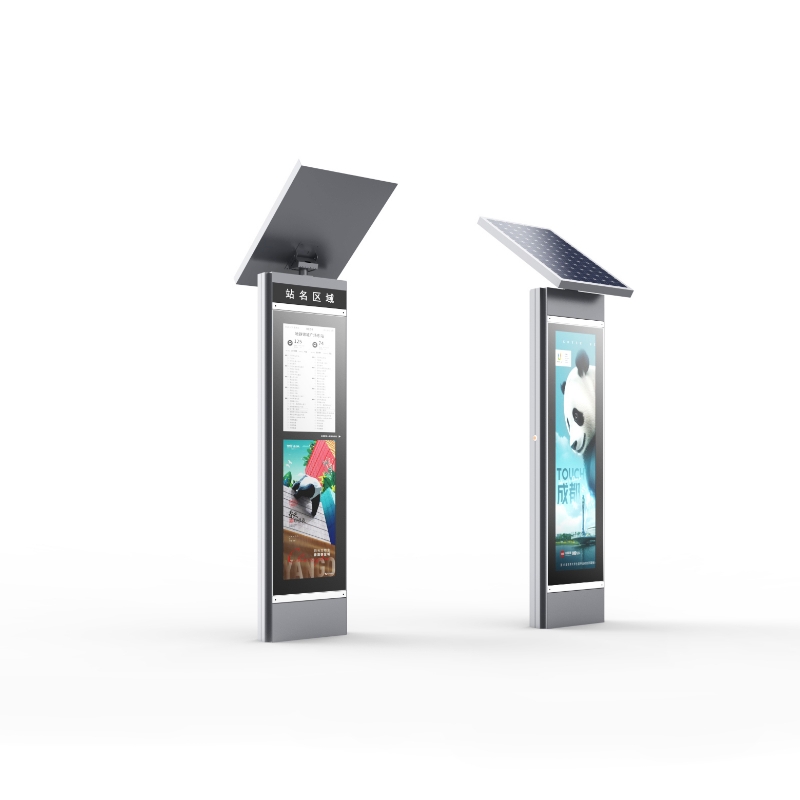

The Outdoor Solar LCD Bus Stop Digital Signage ZEMSO-DZZP-0007
designed for intelligent transportation hubs and smart city communication networks. It integrates real-time passenger information, digital advertising, and interactive services into a single robust outdoor solution.
Supports solar power integration to reduce energy consumption and enable sustainable urban infrastructure deployment. Features a dual-control redundancy system with automatic switching between centralized management and local autonomous operation, ensuring uninterrupted performance. Supports OTA remote updates for simplified system maintenance. Constructed with galvanized steel, stainless steel, and aluminum alloy materials for high strength, corrosion resistance, and long-term outdoor reliability.
Built for flexibility and durability, it supports multiple system configurations and ensures stable operation in demanding outdoor environments.
FAQ
1. Does the system support solar energy?
Yes. It is designed for solar-powered operation, making it suitable for energy-efficient outdoor deployment.
2. Can the specifications be customized?
Yes. Structure, screen size, materials, system configuration, and branding can all be customized.
3. Is it suitable for harsh outdoor conditions?
Yes. It is built with industrial-grade materials to ensure stability in rain, heat, and other extreme environments.
4. What operating systems are supported?
Android, Windows, and Linux are available depending on project requirements.
5. Does it support remote control and updates?
Yes. The system supports centralized remote management and OTA software upgrades.
6. What AI features are included?
It supports passenger statistics, image analysis, voice interaction, TTS, and digital human applications.
7. Can it integrate with external systems?
Yes. Open APIs allow secure and scalable integration with third-party smart city platforms.
