Modern Modular Smart Bus Shelter ZX-BS-003 Specification | |
| Model NO. | ZX-BS-003 |

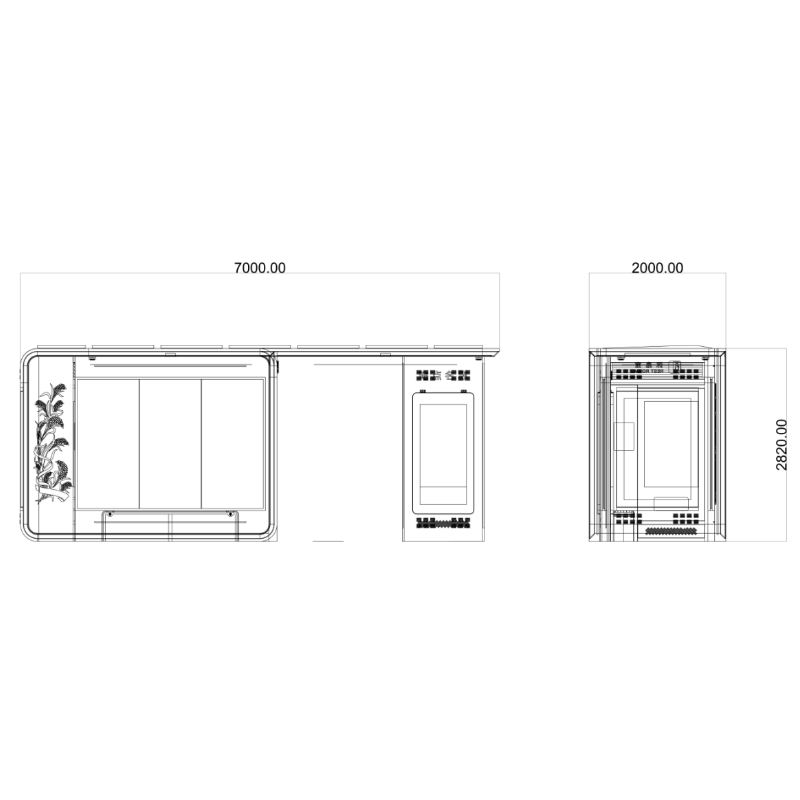

| Dimensions | L 700 × W 200 × H 250 cm |
Materia | Galvanized Steel Sheet |
Surface Glass | 6mm Tempered Glass, 5+5 Laminated Glass |
Embedded Parts | Standard |
Display Type | High-brightness LED Display Screen |
Display Specs | P5 Full-color LED, Brightness: 3000cd/㎡, Pixel:192×64, Max. Power 72W |
Display Controller | Embedded LED Controller, Supports Chinese & English Display Control, 232/485 Remote Data Update, Max. Power 2W |
Solar Panel | 900W Solar Panel |
Solar Charge Controller | 24V System, 40A Charging Current |
Battery Type | 25.6V 120AH Lithium Iron Phosphate Battery |
Mains Power Supply | Optional |
Advertising Light Box | LED Advertising Light Box, Max. Power 72W |
Ambient Light | Optional |
Video Monitoring | Optional |
Control Mode | Local Timer |
Mobile Phone Charging | 2-channel Wired Charging |
Electrical Cooling | Optional |
Bluetooth Speaker | Optional |
Wireless Router | 4G All-Netcom Communication, Wi-Fi Function Optional |
Enclosure Protection Level | IP55 |
Access Door | Gas Strut Door |
Notes | Clean dust on air-cooled dust-proof parts every 6 months; lubricate hinges every 2 years. |
Making Cities Smarter and Travel More Convenient

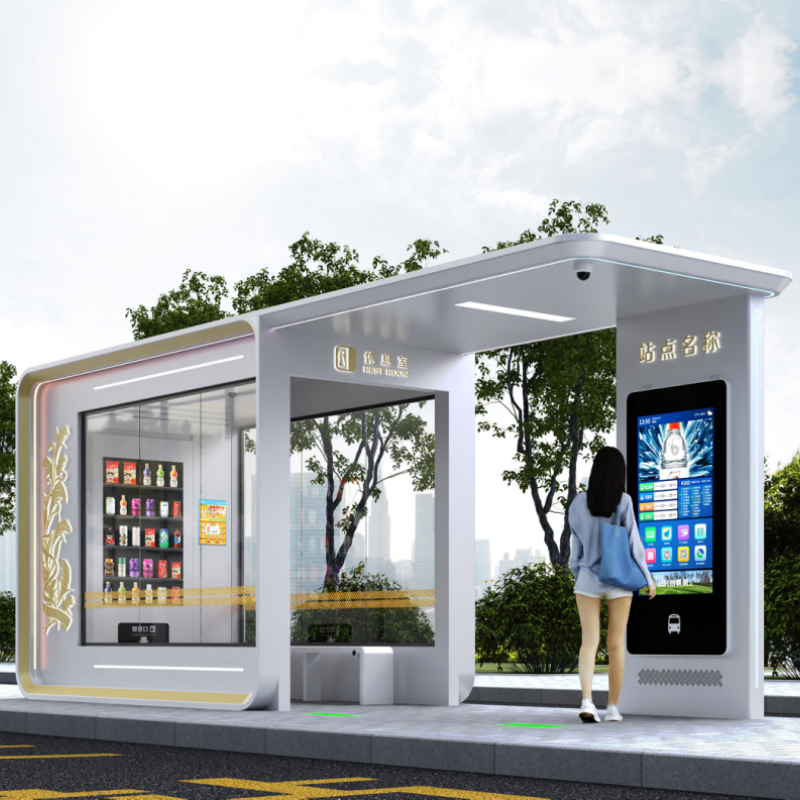

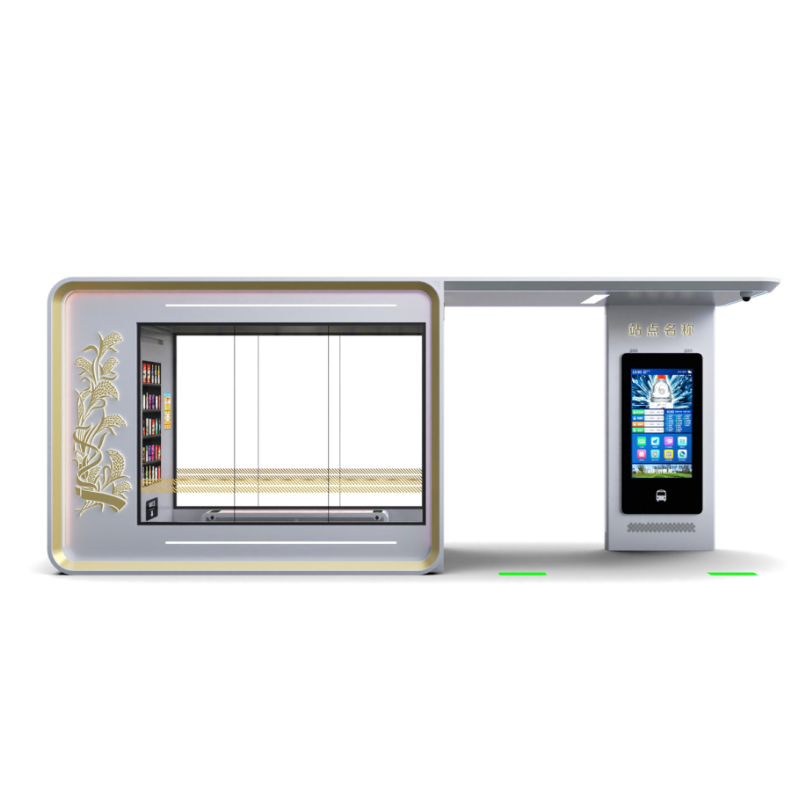

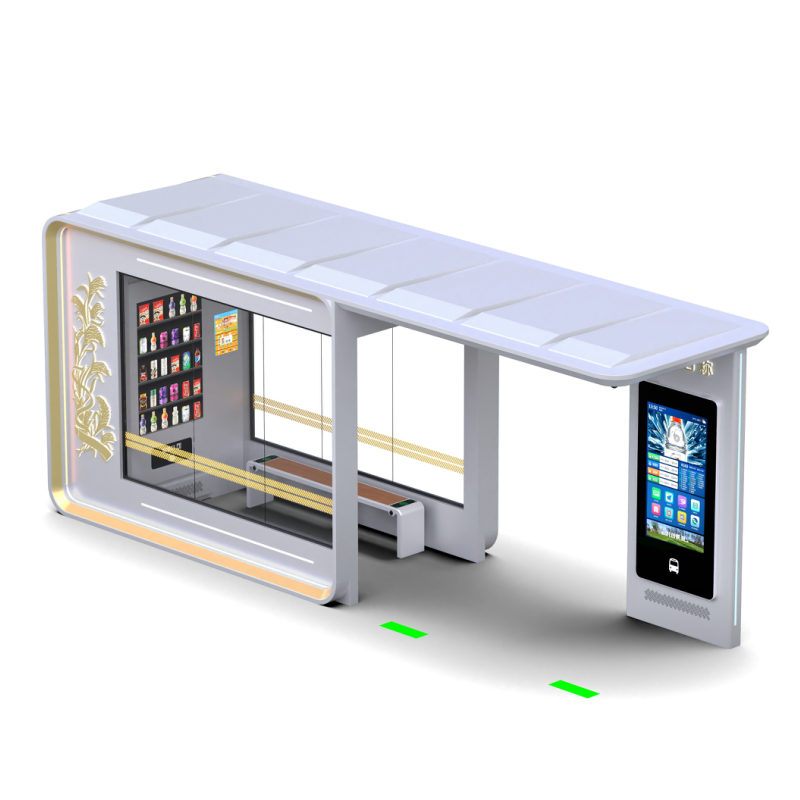

The Outdoor Modern Bus Stop Shelter ZX-BS-003 is a durable and customizable urban transit solution designed for modern city environments. As part of ZEMSO’s basic bus shelter series, this model focuses on structural reliability, practical functionality, and clean architectural aesthetics.
Constructed with high-quality materials such as stainless steel and galvanized steel, the shelter provides excellent corrosion resistance and long-term durability in outdoor conditions. It features a modular structure with flexible configuration options, allowing customization of dimensions, layout, and visual design to meet different project requirements.
The shelter supports integrated lighting systems (LED or fluorescent) and can be equipped with advertising lightboxes or static display panels, making it suitable for both transportation and media display applications. The roof can be configured with PC panels or metal sheets to enhance weather resistance and user comfort.
FAQ
Q1: Can The ZX-BS-003 Bus Shelter Be Customized?
A: Yes, this model supports full customization, including overall dimensions, materials, colors, roof type, and display configurations. OEM production is available based on your drawings or project specifications.
Q2: What Materials Are Used In This Bus Shelter?
A: The structure is made from stainless steel and galvanized steel, ensuring strong structural stability, corrosion resistance, and long-term outdoor performance.
Q3: What Lighting Options Are Available?
A: The shelter supports LED lighting or fluorescent lamps, with customizable light sources depending on project requirements.
Q4: Can The Shelter Include Advertising Displays?
A: Yes, it can be equipped with lightboxes or display panels for advertising, public information, or branding purposes, making it suitable for commercial and municipal applications.
Q5: Is The Roof Weather-Resistant?
A: Yes, the roof can be configured with PC panels or metal plates, providing effective protection against rain, sunlight, and other outdoor conditions.
Q6: Where Is This Bus Shelter Typically Installed?
A: It is widely used in urban streets, residential communities, commercial districts, and public transportation stops as part of city infrastructure projects.
