Outdoor Smart Public Transit Bus Shelter ZX-BS-010 Specification | |
| Model NO. | ZX-BS-010 |

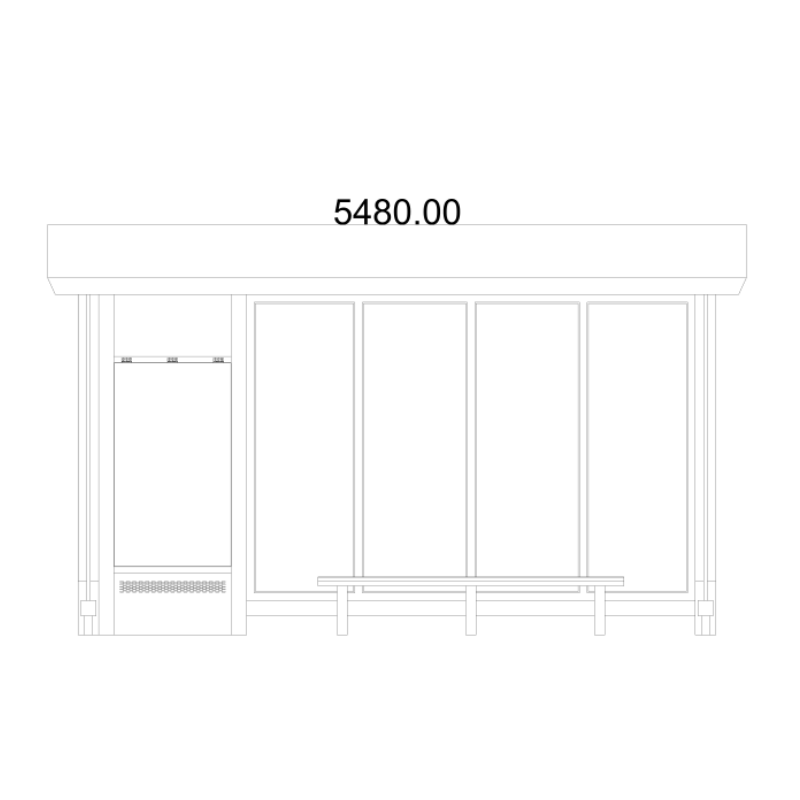

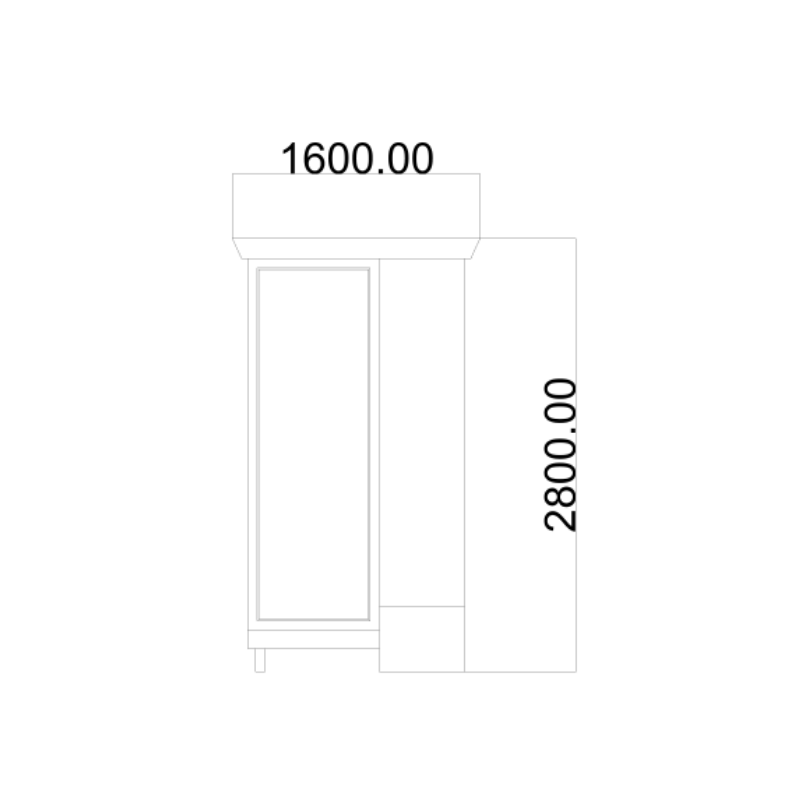

| Size | L548*W160 *H280 cm |
| Material | Galvanized Steel |
| Surface Glass | 6mm Tempered Glass，5+5 Laminated Glass |
| Embedded Parts | Standard |
Display Screen Type | High-Brightness LCD Display |
Display Screen Specifications | 55-inch LCD display, 3000 cd/m² brightness, 1920×1080 resolution, automatic ambient brightness adjustment, maximum power consumption 300W. |
Display Controller | Embedded LED controller supporting bilingual (Chinese/English) display and control, RS-232/RS-485 remote data updates, and a maximum power of 2W. |
Solar Panel | Optional |
Solar Controller | Optional |
Battery Type | Optional |
City Electricity | Standard，Includes Safety Electrical Equipment, 900W Output Power, Supports 100-240VAC. |
Advertising Light Box | LED Advertising Light Box, Maximum Power 72W |
Ambient Lighting | Optional |
Monitor | Optional |
Control Method | Local/ Remote Control |
Phone Charger | 2 USB Phone Charger，Power 18W |
Electrical Appliance Heat Dissipation | Air Cooling, LCD Heat Dissipation |
| Bluetooth Speaker | Optional |
Wireless Router | 4G Full-Network Connectivity; Optional Wi-Fi Functionality. |
Self-Service Function | Optional |
Enclosure Protection Level | IP55 |
Inspection door | Gas-Strut Door |
Notes | Dust removal is required for the air-cooled and dustproof parts every 6 months, and the hinges should be oiled every 2 years. |
Making Cities Smarter and Travel More Convenient

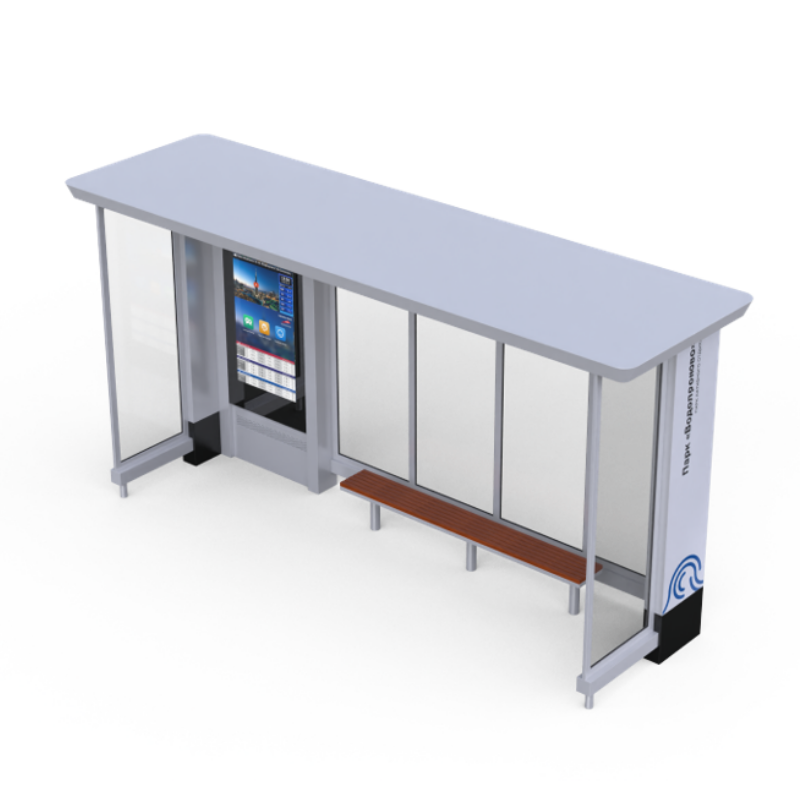

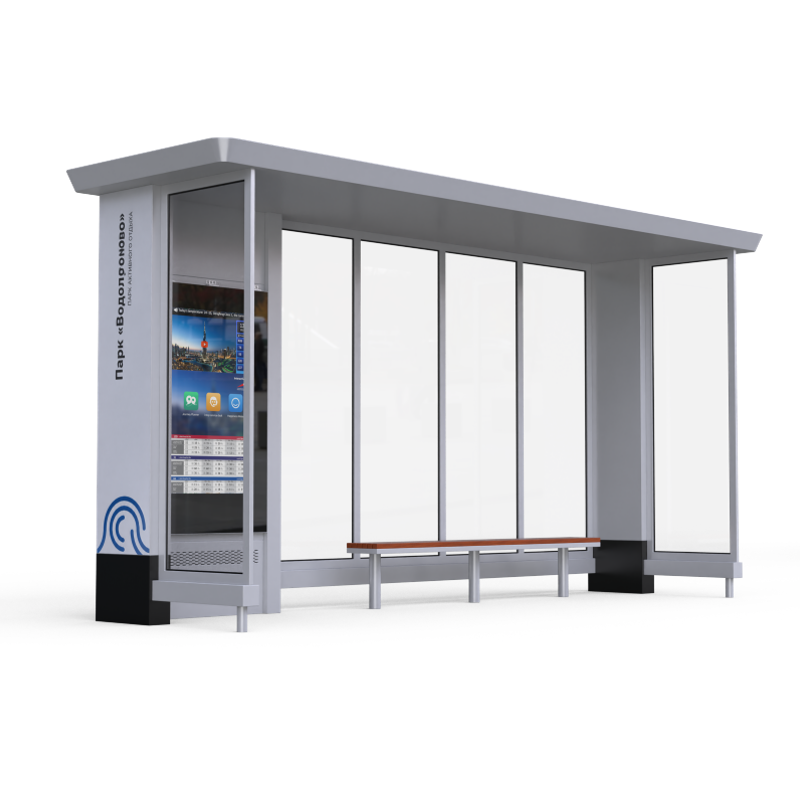

The Outdoor Smart Public Transit Bus Shelter ZX-BS-010 is an advanced smart transit solution designed to support sustainable and intelligent urban transportation systems. As part of ZEMSO’s smart bus shelter series, this model integrates renewable energy technology with intelligent control systems to create a modern, eco-friendly public infrastructure.
The shelter is constructed with high-quality materials such as galvanized steel, stainless steel, and aluminum profiles, ensuring strong structural stability and long-term outdoor durability. It features a modular design that allows flexible customization of dimensions, layout, and functional configurations to meet different project requirements.
In addition, the system supports intelligent features such as digital displays, LED lighting, and centralized control systems, enabling real-time information release, advertising display, and smart operation management. These features transform the bus shelter into a multifunctional urban information hub rather than just a waiting space.

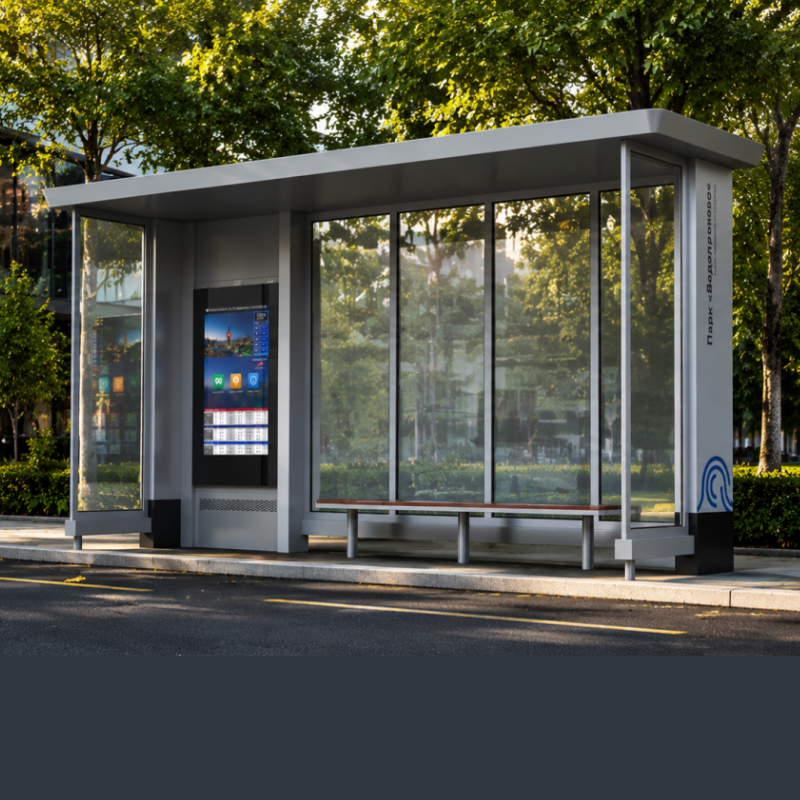

Widely applied in urban streets, transportation hubs, smart city projects, and environmentally focused developments, the ZX-BS-010 enhances both commuting efficiency and the sustainability of public infrastructure.
FAQ
Q1: What Smart Features Does This Bus Shelter Support?

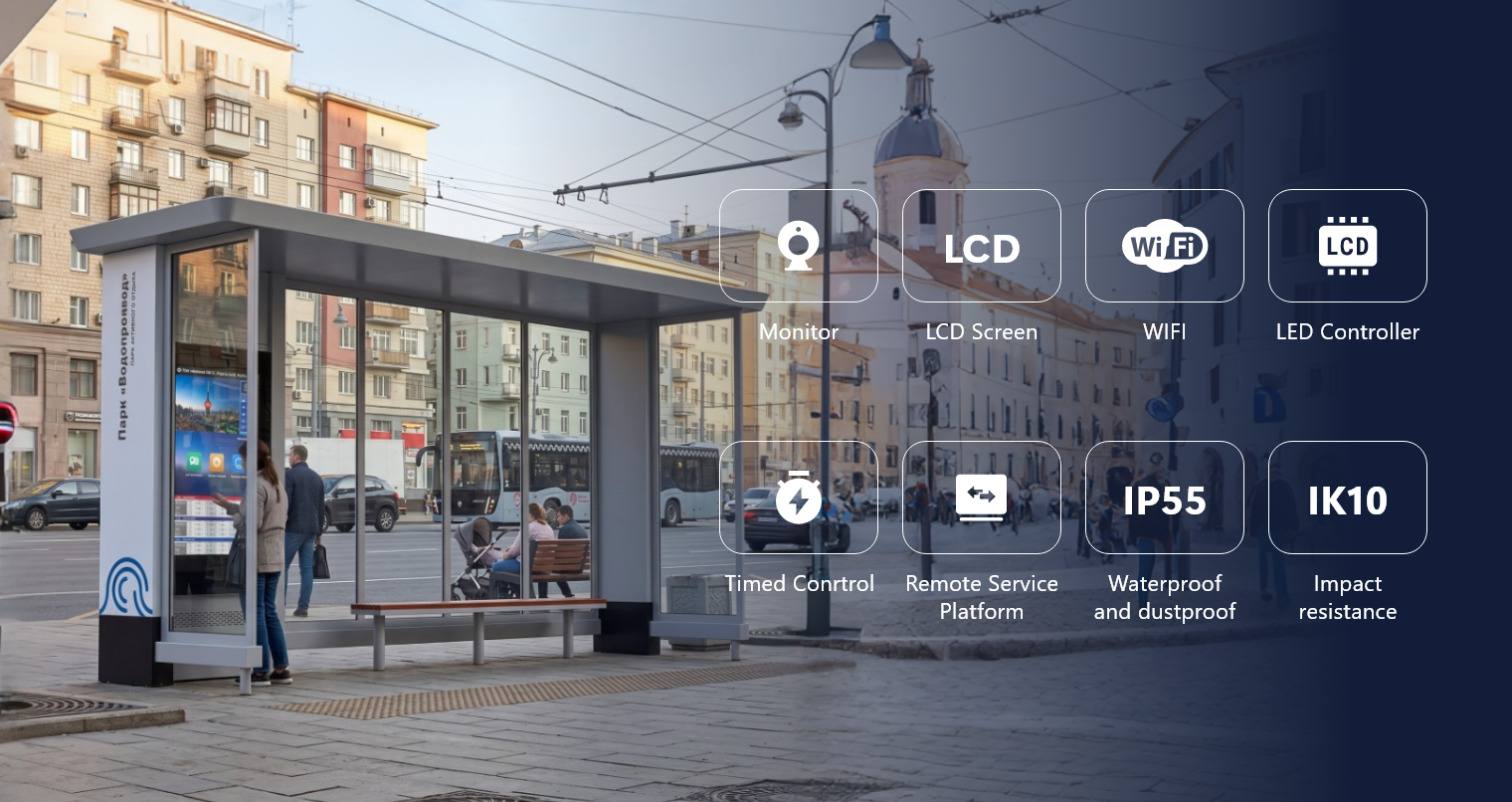

A: The ZX-BS-010 supports intelligent control systems, digital displays, LED lighting, and remote management functions. It can be used for real-time information updates, advertising, and smart city applications.
Q2: Can The Shelter Be Customized For Different Projects?
A: Yes, full customization is supported, including size, materials, color, display modules, and functional systems such as solar integration and smart control features. OEM services are available based on your drawings or requirements.
Q3: What Materials Are Used And Are They Suitable For Outdoor Use?
A: The shelter is made from galvanized steel, stainless steel, and aluminum, ensuring excellent corrosion resistance and long-term durability in outdoor environments.
Q4: What Power Supply Options Are Available?
A: The system supports solar power, AC (110V–240V), and DC (12V/24V) configurations, offering flexible deployment for different locations, including off-grid areas.
Q5: Can Advertising Or Digital Screens Be Integrated?
A: Yes, the shelter supports advertising lightboxes and can be upgraded with LCD/LED digital displays for information publishing or commercial advertising.
Q6: Where Is This Smart Bus Shelter Typically Used?
A: It is widely used in smart city projects, urban streets, eco-friendly developments, transportation hubs, and commercial districts where intelligent and sustainable infrastructure is required.
