Ultrathin Bus Stop Signage ZEMSO-DZZP-0045 Specification | ||||
| Basic Functions | Illustrate | A-level | Class B | C-Class |
| Appearance | Appearance Style | Fixed | Fixed | Fixed |
| Appearance thickness | 150mm | 110mm | 110mm | |
| Material Type | Galvanizing | Optional | Optional | |
| Mood Light | None | Support | Support | |
| Material | Cooling method | Air Cooling | Air Cooling | Air Cooling |
| LCD screen | Screen size | 55'' | 55'' | 55'' |
| Screen brightness | 1500CD/㎡ | 2500CD/㎡ | 3500CD/㎡ | |
| Screen type | Conventional screen | Industrial screen | Dynamic backlight industrial screen | |
| Screen technology | Ordinary | Normal/fit | Normal/fit | |
| Temperature range | -15~65℃ | -25~85℃ | -28~110℃ | |
| Control functions | Centralized Manager | 1st generation | 3rd generation | 3rd generation |
| system | Android | Android | Android | |
| Configuration | 4+32G | 4+32G | 4+32G | |
| Monitoring system | Camera pixels | 200W | 400W | 400W |
| Number of cameras | 2 | 2 | 2 | |
| storage | 2T | 4T | 4T | |
| Detection sensor | state | 2-way | 2-way | 2-way |
| temperature | 2-way | 2-way | 2-way | |
| Air switch and leakage protection | surge | 1 way | 1 way | 1 way |
| Leakage insurance | 1 way | 1 way | 1 way | |
| socket | 1 way | 1 way | 1 way | |
| Embedded Software | Front-end application | Regular station announcement | Support function customization | Support function customization |
| TTS voice broadcast | Support | Support | Support | |
| Play Safe | Support | Support | Support | |
| communication | 4G communication (brand wireless router) | 4 network ports | 4 network ports | 4 network ports |
| Platform Module | Station distance prediction function, signal sending function | support | support | support |
| Time forecast station, message sending function | Not support | support | support | |
| Operation and maintenance management system | support | support | support | |
| Optional Features | Touch query (and various interactive customizations) | |||
| Remote firmware upgrade | ||||
| Passenger flow statistics | ||||
| Automatic fault analysis function | ||||
| New Product | ||||
| System Level Protection | ||||
The system adopts a dual-mode redundancy design,featuring an intelligent switching mechanism
between centralized control via the HC300 and autonomous discrete control of key peripheral
submodules.This ensures seamless operation of the distributed control system under both normal and
fault conditions.The device supports OTA(Over-the-Air)remote upgrades.
It combines exceptional structural strength with outstanding weather resistance,ensuring long-term
and stable operation of the equipment in outdoor environments.
Feedback is immediate and clear,status is perceivable,and operation is efficient.
Image analysis,TTS,passenger flow statistics,edge algorithms..
Realize the integration of Al large models,build workflows for digital human
Q&A applications,and provide APl interfaces to the outside.end users
communicate with the digital human through touchscreen and voice interaction.
Comprehensive standardized interfaces and security protocols are provided to enable the secure and
stable integration of diverse third-party hardware and software, there by allowing for boundless
extension and integration of system functionalities.

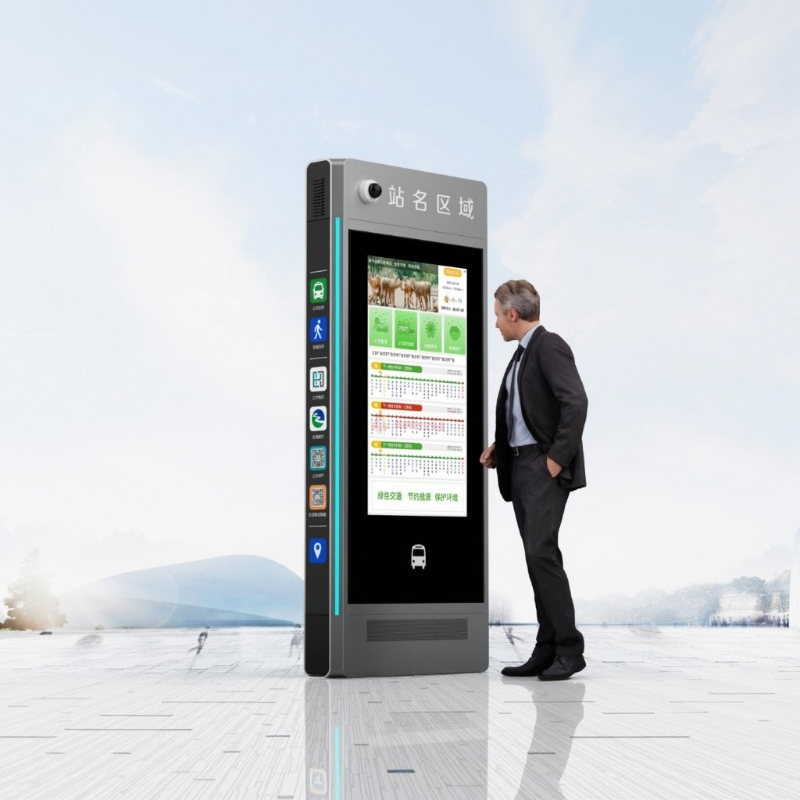

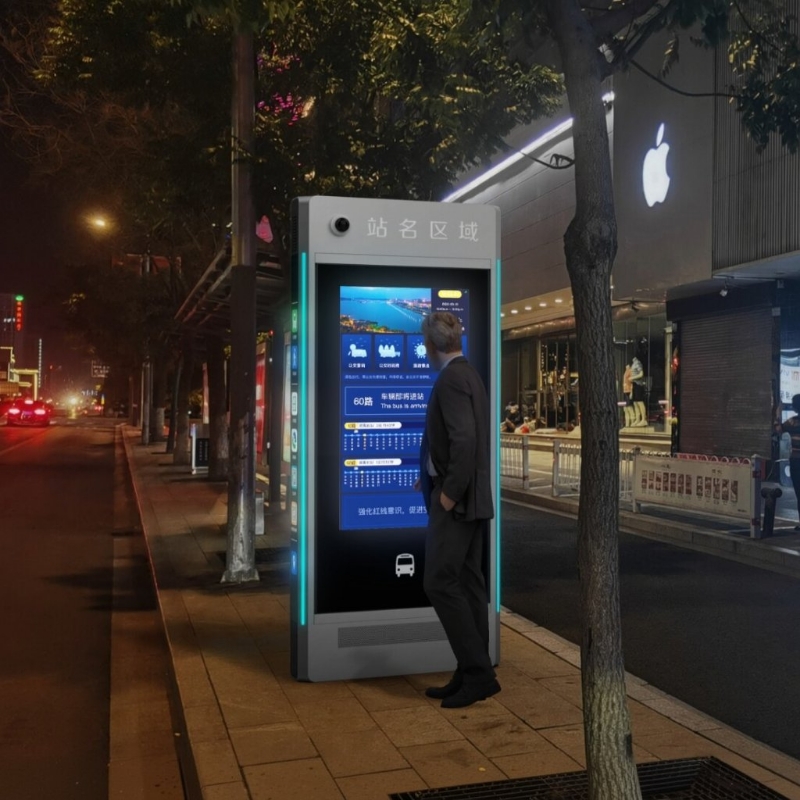

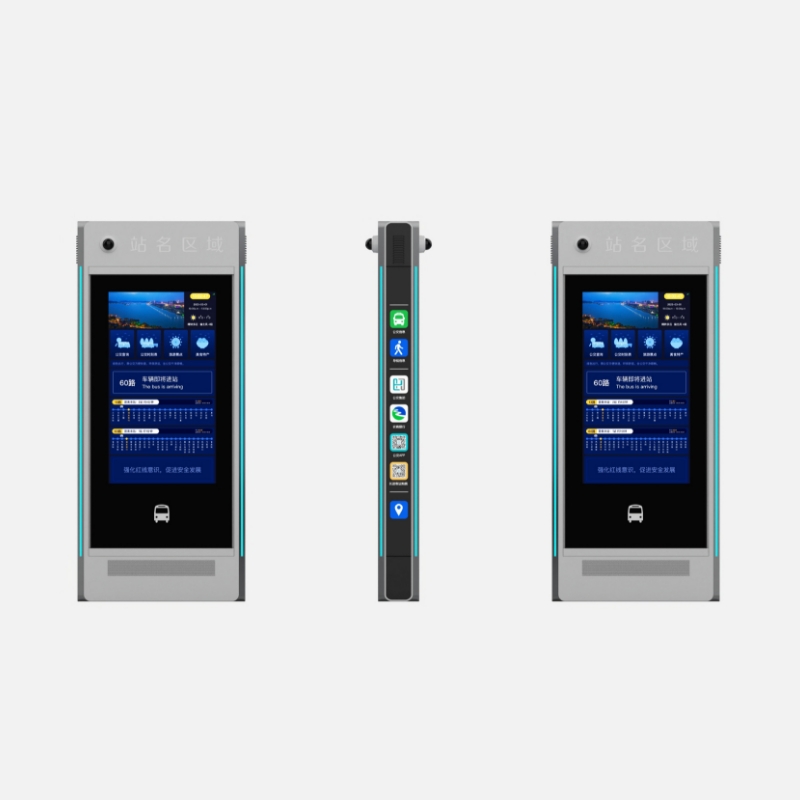

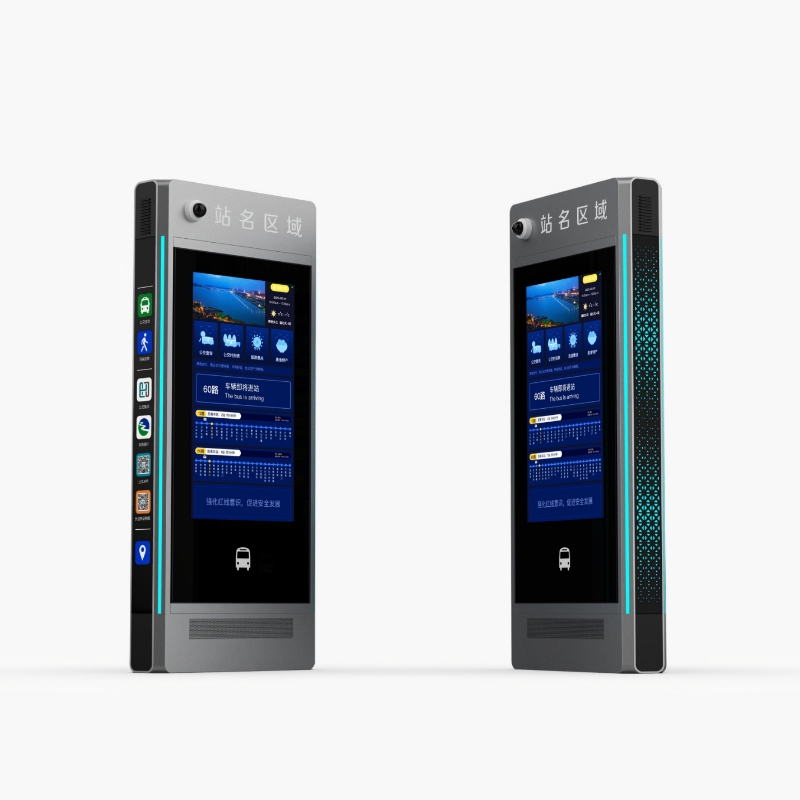

The Outdoor LCD Screen Digital Signage ZEMSO-DZZP-0045 is developed for smart transportation, outdoor advertising, and public information display applications. Designed with a modern structure and intelligent management system, it delivers stable performance and excellent visibility in outdoor environments.
Equipped with a dual-mode control mechanism that enables automatic switching between centralized management and independent local control, ensuring continuous and reliable operation. OTA remote upgrade functionality simplifies maintenance and software updates. Made from premium stainless steel, galvanized steel, and aluminum alloy materials, providing excellent weather resistance and structural durability for long-term outdoor use. Responsive touch modules provide smooth operation, fast feedback, and efficient user interaction for public information access.
Provides standardized APIs and secure interface protocols for seamless connection with third-party hardware, software, and smart city platforms.
FAQ
1. Is the ZEMSO-DZZP-0045 designed for outdoor environments?
Yes. The system is built with weather-resistant materials for reliable long-term outdoor operation.
2. Can the display size and design be customized?
Yes. Custom sizes, structures, logos, and system configurations are available.
3. What operating systems can be installed?
Android, Windows, and Linux systems are supported.
4. Does the system support remote management?
Yes. The signage supports centralized remote control and OTA software updates.
5. What smart AI functions are included?
The system supports passenger statistics, image recognition, TTS broadcasting, edge computing, and AI digital human interaction.
6. What network connections are supported?
WIFI, LAN, 3G, and 4G network options are available.
7. Can the system integrate with third-party platforms?
Yes. Open APIs allow secure integration with external systems and smart city applications.
