Ultrathin Bus Stop Signage ZEMSO-DZZP-0001 Specification | ||||
| Basic Functions | Illustrate | A-level | Class B | C-Class |
| Appearance | Appearance Style | Fixed | Fixed | Fixed |

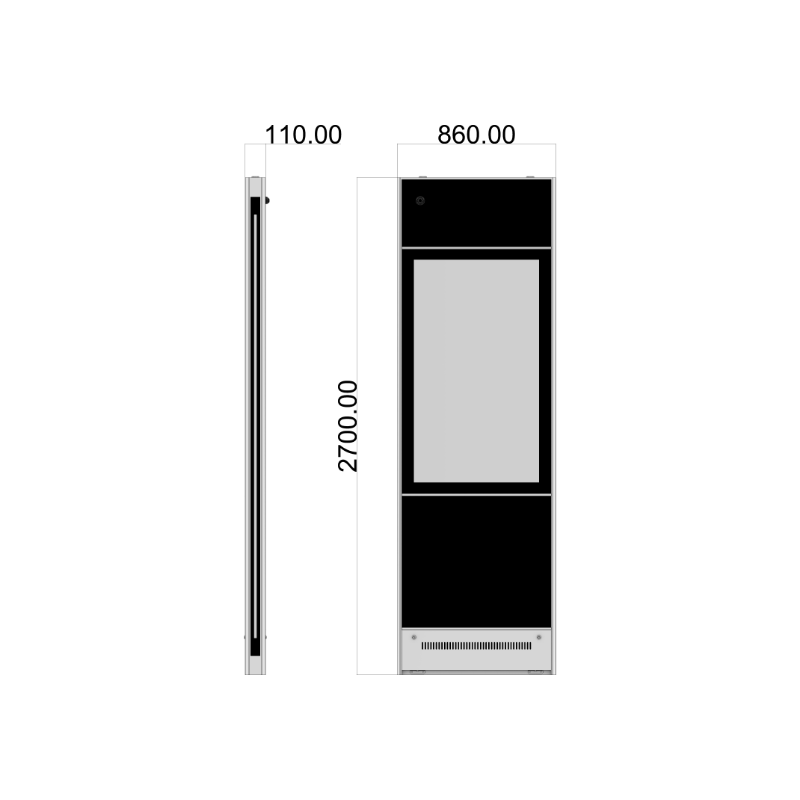

| Appearance thickness | 150mm | 110mm | 110mm | |
| Material Type | Galvanizing | Optional | Optional | |
| Mood Light | None | Support | Support | |
| Material | Cooling method | Air Cooling | Air Cooling | Air Cooling |
| LCD screen | Screen size | 55'' | 55'' | 55'' |
| Screen brightness | 1500CD/㎡ | 2500CD/㎡ | 3500CD/㎡ | |
| Screen type | Conventional screen | Industrial screen | Dynamic backlight industrial screen | |
| Screen technology | Ordinary | Normal/fit | Normal/fit | |
| Temperature range | -15~65℃ | -25~85℃ | -28~110℃ | |
| Control functions | Centralized Manager | 1st generation | 3rd generation | 3rd generation |
| system | Android | Android | Android | |
| Configuration | 4+32G | 4+32G | 4+32G | |
| Monitoring system | Camera pixels | 200W | 400W | 400W |
| Number of cameras | 2 | 2 | 2 | |
| storage | 2T | 4T | 4T | |
| Detection sensor | state | 2-way | 2-way | 2-way |
| temperature | 2-way | 2-way | 2-way | |
| Air switch and leakage protection | surge | 1 way | 1 way | 1 way |
| Leakage insurance | 1 way | 1 way | 1 way | |
| socket | 1 way | 1 way | 1 way | |
| Embedded Software | Front-end application | Regular station announcement | Support function customization | Support function customization |
| TTS voice broadcast | Support | Support | Support | |
| Play Safe | Support | Support | Support | |
| communication | 4G communication (brand wireless router) | 4 network ports | 4 network ports | 4 network ports |
| Platform Module | Station distance prediction function, signal sending function | support | support | support |
| Time forecast station, message sending function | Not support | support | support | |
| Operation and maintenance management system | support | support | support | |
| Optional Features | Touch query (and various interactive customizations) | |||
| Remote firmware upgrade | ||||
| Passenger flow statistics | ||||
| Automatic fault analysis function | ||||
| New Product | ||||
| System Level Protection | ||||
The system adopts a dual-mode redundancy design,featuring an intelligent switching mechanism
between centralized control via the HC300 and autonomous discrete control of key peripheral
submodules.This ensures seamless operation of the distributed control system under both normal and
fault conditions.The device supports OTA(Over-the-Air)remote upgrades.
It combines exceptional structural strength with outstanding weather resistance,ensuring long-term
and stable operation of the equipment in outdoor environments.
Feedback is immediate and clear,status is perceivable,and operation is efficient.
Image analysis,TTS,passenger flow statistics,edge algorithms..
Realize the integration of Al large models,build workflows for digital human
Q&A applications,and provide APl interfaces to the outside.end users
communicate with the digital human through touchscreen and voice interaction.
Comprehensive standardized interfaces and security protocols are provided to enable the secure and
stable integration of diverse third-party hardware and software, there by allowing for boundless
extension and integration of system functionalities.

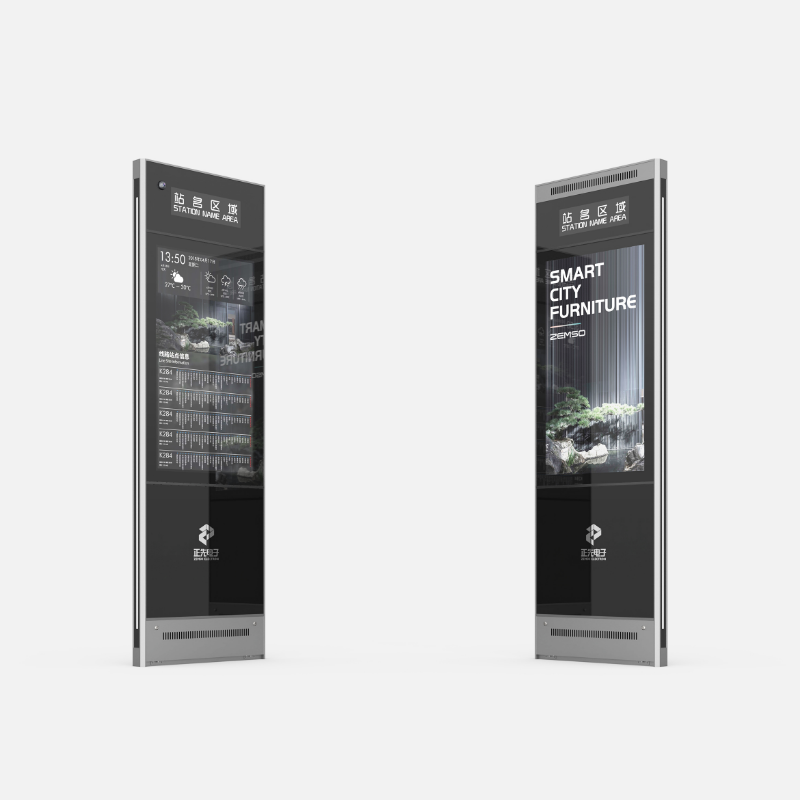

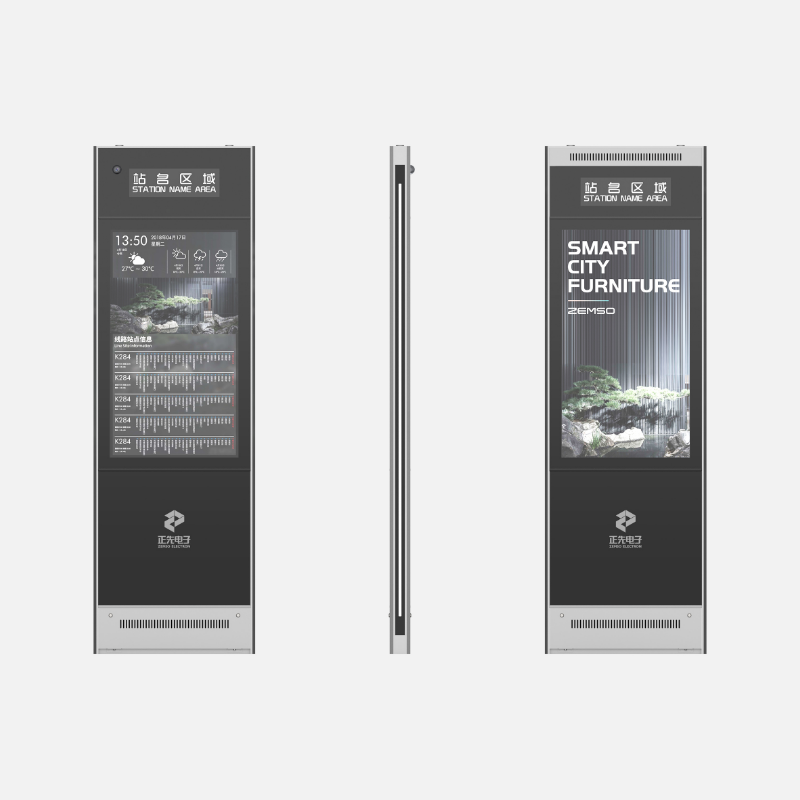

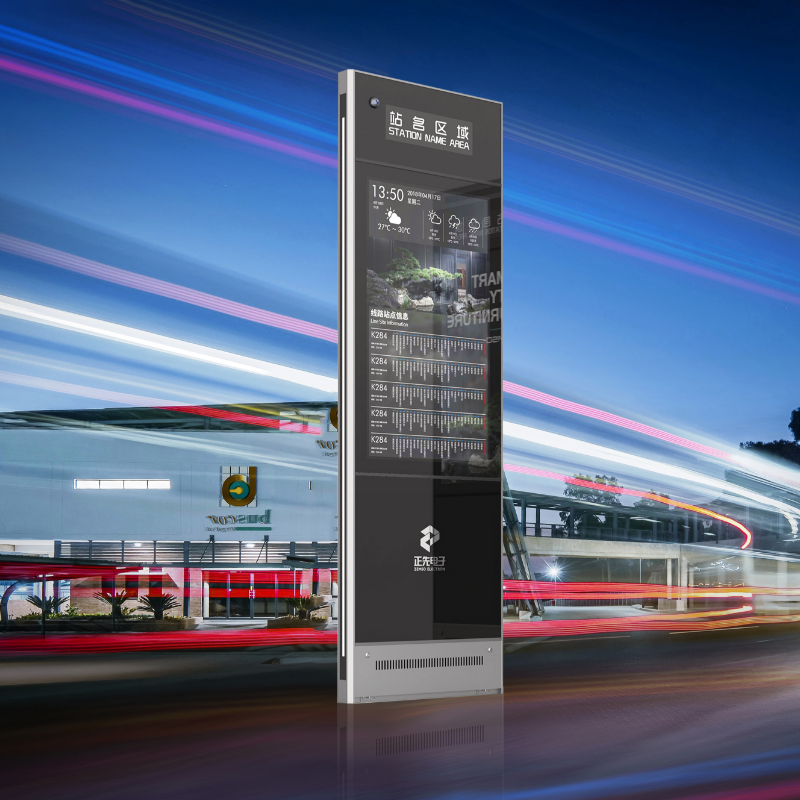

The Smart Multifunctional Ultrathin Bus Stop Signage ZEMSO-DZZP-0002 is an advanced outdoor digital display solution designed for smart city transportation systems. It integrates ultra-thin design, AI interaction, and centralized management to deliver real-time information, intelligent services, and reliable performance in all weather conditions.
Built with industrial-grade materials and modular architecture, it ensures long-term stability, easy maintenance, and flexible customization for different urban environments.
FAQ
Q1: Can the bus stop signage be customized?
Yes. Size, material, design, LOGO, and system configuration can all be customized based on project requirements.
Q2: Is it suitable for harsh outdoor environments?
Yes. The structure is built with weather-resistant materials and is designed for long-term outdoor operation in heat, rain, and humidity.
Q3: Does it support remote management?
Yes. It supports centralized cloud control and OTA remote upgrades for easy system maintenance.
Q4: What smart features does it include?
It supports AI functions such as passenger flow statistics, voice interaction, image recognition, and digital human services.
Q5: Can it integrate with third-party systems?
Yes. Open APIs and standardized interfaces allow seamless integration with external platforms and smart city systems.
Q6: What operating systems are available?
Android, Windows, and Linux are supported depending on project needs.
