Bus Stop Digital Signage ZEMSO-DZZP-0006 Specification | ||||
| Basic Functions | Illustrate | A-level | Class B | C-Class |
| Appearance | Appearance Style | Fixed | Fixed | Fixed |
| Appearance thickness | 150mm | 110mm | 110mm | |
| Material Type | Galvanizing | Optional | Optional | |
| Mood Light | None | Support | Support | |
| Material | Cooling method | Air Cooling | Air Cooling | Air Cooling |
| LCD screen | Screen size | 55'' | 55'' | 55'' |
| Screen brightness | 1500CD/㎡ | 2500CD/㎡ | 3500CD/㎡ | |
| Screen type | Conventional screen | Industrial screen | Dynamic backlight industrial screen | |
| Screen technology | Ordinary | Normal/fit | Normal/fit | |
| Temperature range | -15~65℃ | -25~85℃ | -28~110℃ | |
| Control functions | Centralized Manager | 1st generation | 3rd generation | 3rd generation |
| system | Android | Android | Android | |
| Configuration | 4+32G | 4+32G | 4+32G | |
| Monitoring system | Camera pixels | 200W | 400W | 400W |
| Number of cameras | 2 | 2 | 2 | |
| storage | 2T | 4T | 4T | |
| Detection sensor | state | 2-way | 2-way | 2-way |
| temperature | 2-way | 2-way | 2-way | |
| Air switch and leakage protection | surge | 1 way | 1 way | 1 way |
| Leakage insurance | 1 way | 1 way | 1 way | |
| socket | 1 way | 1 way | 1 way | |
| Embedded Software | Front-end application | Regular station announcement | Support function customization | Support function customization |
| TTS voice broadcast | Support | Support | Support | |
| Play Safe | Support | Support | Support | |
| communication | 4G communication (brand wireless router) | 4 network ports | 4 network ports | 4 network ports |
| Platform Module | Station distance prediction function, signal sending function | support | support | support |
| Time forecast station, message sending function | Not support | support | support | |
| Operation and maintenance management system | support | support | support | |
| Optional Features | Touch query (and various interactive customizations) | |||
| Remote firmware upgrade | ||||
| Passenger flow statistics | ||||
| Automatic fault analysis function | ||||
| New Product | ||||
| System Level Protection | ||||
The system adopts a dual-mode redundancy design,featuring an intelligent switching mechanism
between centralized control via the HC300 and autonomous discrete control of key peripheral
submodules.This ensures seamless operation of the distributed control system under both normal and
fault conditions.The device supports OTA(Over-the-Air)remote upgrades.
It combines exceptional structural strength with outstanding weather resistance,ensuring long-term
and stable operation of the equipment in outdoor environments.
Feedback is immediate and clear,status is perceivable,and operation is efficient.
Image analysis,TTS,passenger flow statistics,edge algorithms..
Realize the integration of Al large models,build workflows for digital human
Q&A applications,and provide APl interfaces to the outside.end users
communicate with the digital human through touchscreen and voice interaction.
Comprehensive standardized interfaces and security protocols are provided to enable the secure and
stable integration of diverse third-party hardware and software, there by allowing for boundless
extension and integration of system functionalities.

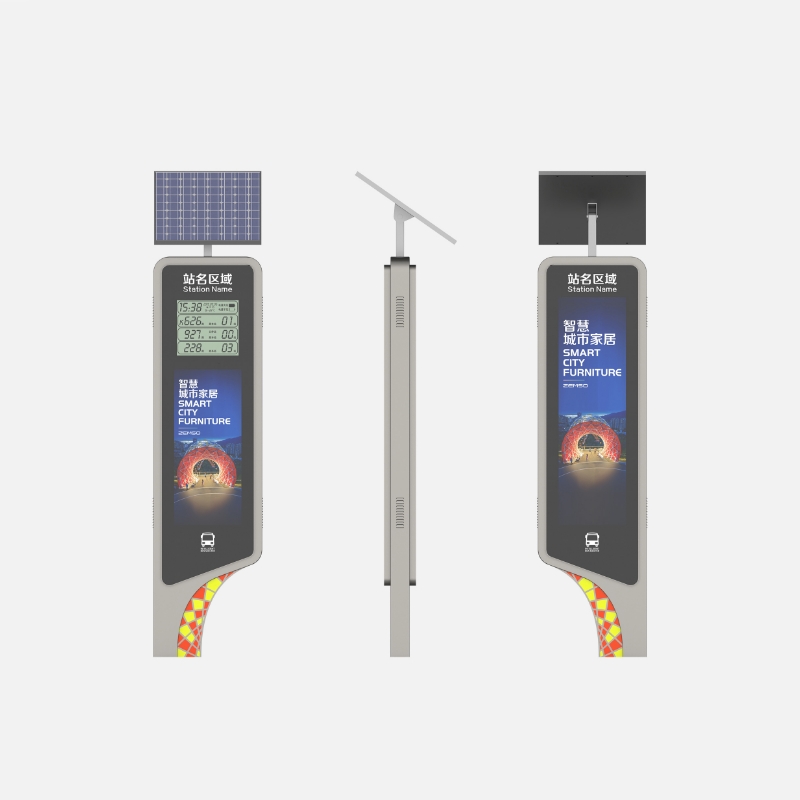

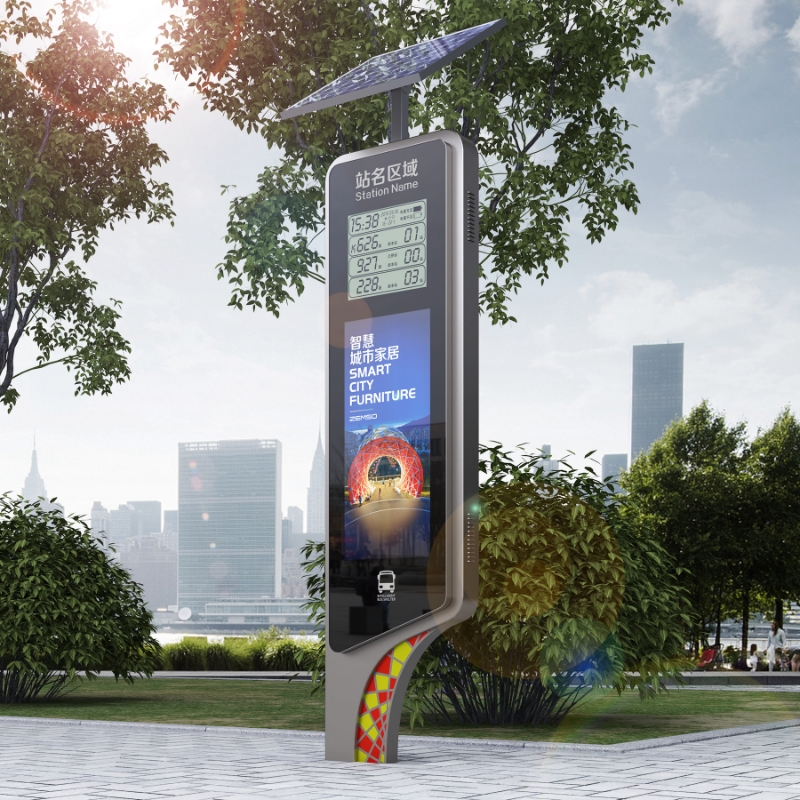

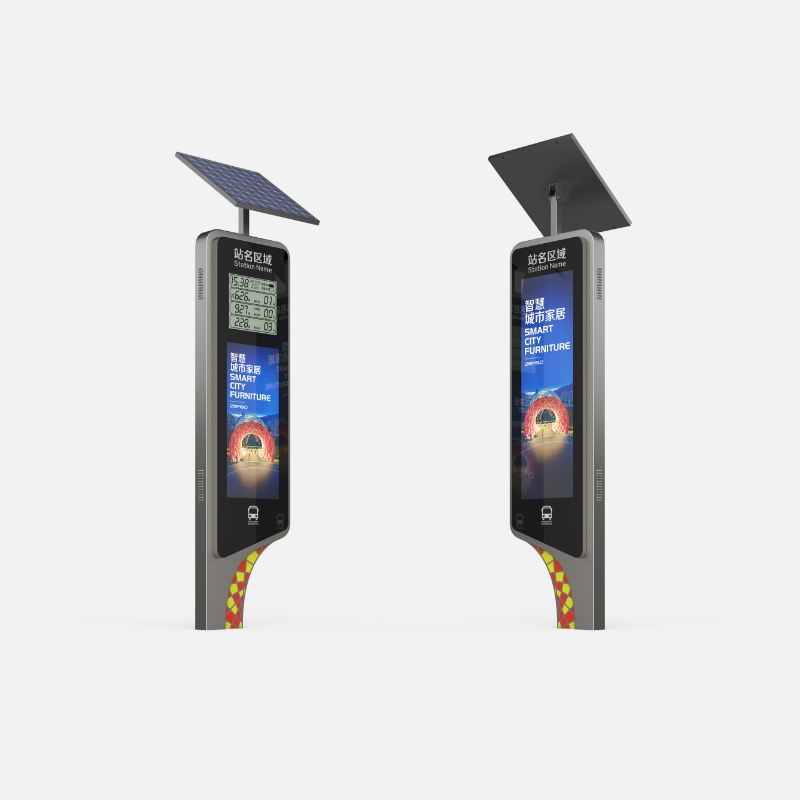

The Outdoor Solar Bus Stop Digital Display ZEMSO-DZZP-0006 engineered for outdoor public transportation and advertising applications. Combining renewable energy technology with intelligent digital functions, it helps cities build efficient, sustainable, and connected transportation infrastructure.
Designed with solar energy compatibility to support low-power consumption and environmentally friendly outdoor operation. The system adopts a dual-management structure with automatic switching between centralized and independent control modes, ensuring stable and continuous system performance. Remote OTA updates are supported for easier maintenance. Equipped with responsive interactive modules for smooth touch operation and fast information feedback.
Its customizable design and intelligent management system make it suitable for various smart city deployment scenarios.
FAQ
1. Is this display powered by solar energy?
Yes. The system supports solar-powered operation for outdoor smart transportation applications.
2. Can the product specifications be customized?
Yes. Dimensions, screen size, materials, logo, and software configurations can be customized.
3. Is the display suitable for harsh outdoor environments?
Yes. The housing is designed with weather-resistant materials for stable outdoor use.
4. Which operating systems are supported?
The display supports Android, Windows, and Linux operating systems.
5. Does the device support remote upgrades?
Yes. OTA remote upgrade and centralized management functions are available.
6. What intelligent features are included?
AI functions include passenger statistics, image analysis, TTS voice broadcasting, and digital human interaction.
7. Can the display connect with external systems?
Yes. Open APIs enable integration with third-party software and smart city management systems.
